Product description
This text has been translated with AI.

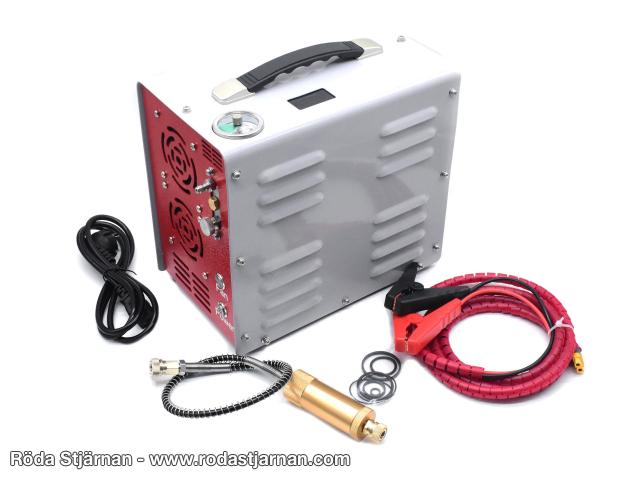

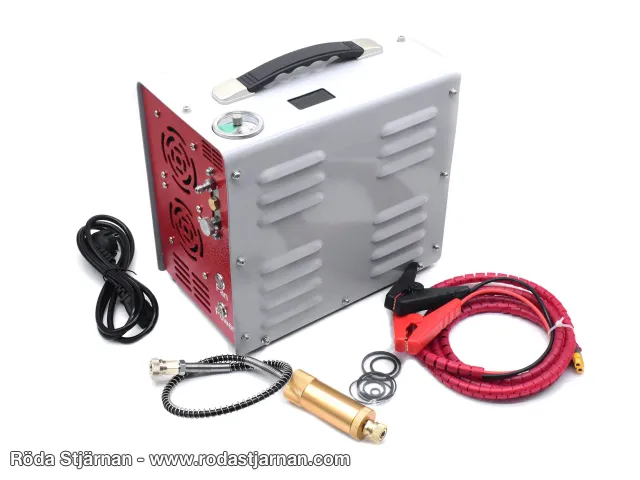

Evelox PCP Compressor 2.0 is a portable high-pressure compressor for filling PCP airguns and smaller pressure vessels up to 0.7 liters. It provides a
working pressure of up to 300 bar and features adjustable automatic shut-off. Compared to its predecessor, this model fills about 30% faster. A 700 cc bottle is filled from 0 to 300 bar in approximately 21 minutes.
Operation with 230 V or 12 V
The compressor can be powered from a regular wall outlet or from a 12 V car battery. Both mains cable and battery cable are included. The
fan-cooled design requires no external water cooling. Always start the cooling fan before the compressor and keep it running throughout the filling process.
Large moisture filter and Foster coupling
The included
large moisture filter is installed between the compressor and the pressure vessel. It reduces the amount of moisture that follows the air into the bottle, helping to minimize the risk of internal corrosion. The filter material can be inspected and replaced and must be kept dry to function properly. The air hose is equipped with a Foster coupling (female). For certain PCP rifles, such as models from Hatsan, a separate adapter may be required, item no. 42907.
Safe use
Always check the maximum permitted filling pressure and valid inspection date of the pressure vessel before use.
Never overfill a pressure vessel and never leave the compressor unattended. The automatic shut-off is an aid and does not replace supervision. The operating temperature must not exceed 80 °C and the maximum continuous operating time is 30 minutes. After filling, release the pressure in the hose using the bleed valve before disconnecting the pressure vessel. Also release the hose before restarting to reduce the load on the fuse.
Specifications
|
| Maximum working pressure: | 300 bar |
| Power: | 250 W |
| Air flow: | Up to 10 l/min |
| Maximum volume of pressure vessel: | 0.7 liters (700 cc) |
| Filling time: | Approx. 21 minutes for 700 cc, 0–300 bar |
| Power supply: | 220–230 V AC or 12 V DC |
| Cooling: | Fan cooling |
| Maximum working temperature: | 80 °C |
| Maximum continuous operating time: | 30 minutes |
| Automatic shut-off: | Yes, adjustable |
| Overload protection: | Yes |
| Connection: | Foster coupling, female |
| Dimensions: | 370 x 260 x 400 mm |
| Weight: | 9.5 kg |
