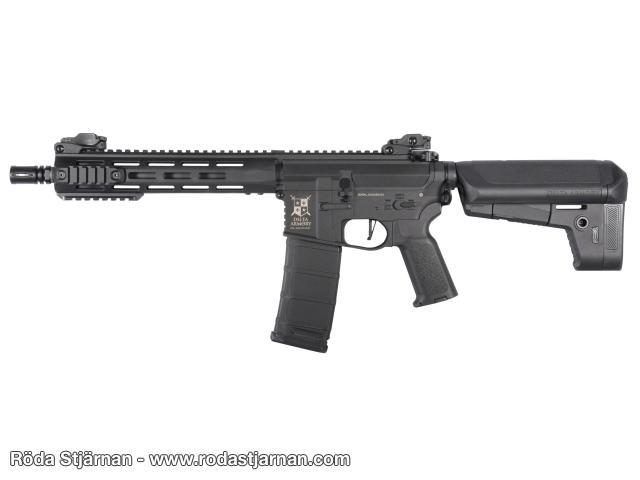

Delta Armory M4 AR15 M-LOK 10" Charlie is a lightweight AR15-based airsoft rifle with a 10" M-LOK handguard, 6.03 mm precision barrel, and quick change spring. Weighing around 2.1 kg and featuring an adjustable stock, it is a handy AEG suitable both as a first airsoft rifle and for players who want a light rifle with great possibilities for mounting personal accessories. The receiver is made of reinforced polymer to keep the weight down, while components such as the trigger and several load-bearing parts are made of metal. Internally, there is a Version 2 gearbox with SHS parts, steel gears, and 8 mm metal bushings.

10" M-LOK Handguard and Picatinny Rail

The 10-inch M-LOK handguard provides plenty of space for mounting grips, lights, and other compatible accessories without needing to cover the entire handguard with rails. On top of the rifle runs a 22 mm Picatinny rail for, for example, a red dot sight or riflescope. The outer barrel has a 14 mm CCW thread for compatible suppressors and other barrel accessories.

6.03 mm Precision Barrel and Rotary Hop-up

The rifle features a 280 mm inner barrel with a 6.03 mm diameter together with an adjustable rotary hop-up. The hop-up makes it possible to tune the trajectory to the chosen airsoft BB weight. With a listed muzzle velocity of about 119 m/s, we recommend 0.25–0.28 g BBs. 0.25 g works well as an all-round choice, while 0.28 g can provide a more stable trajectory, especially when playing outdoors.

SHS Parts and QRS Gen.2

The Version 2 gearbox is equipped with SHS piston with metal teeth, SHS piston head, and SHS tappet plate. The drivetrain also features steel gears and 8 mm metal bushings. QRS Gen.2 quick change spring makes it possible to change the main spring without disassembling the gearbox. The motor is also easily accessible through a quick-change motor system, which simplifies future service and upgrades.

Battery and Magazine Included

The rifle comes with a 9.6 V 1100 mAh NiMH battery and charger, making it ready to use without buying a separate battery and charger. The battery uses a Tamiya connector. A DMAG mid-cap magazine for 120 BBs is also included.

Specifications


Power:	Electric AEG
Caliber:	6 mm BB
Muzzle Energy:	Approx. 1.41 J
Muzzle Velocity:	Approx. 119 m/s
Recommended BB Weight:	0.25–0.28 g
Gearbox:	Version 2
Hop-up:	Adjustable rotary hop-up
Inner Barrel:	6.03 mm
Inner Barrel Length:	280 mm
Handguard:	10" M-LOK
Optics Rail:	22 mm Picatinny
Barrel Thread:	14 mm CCW
Spring Change:	QRS Gen.2 quick change spring
Bearings:	8 mm metal bushings
Battery Connector:	Tamiya
Battery:	9.6 V 1100 mAh NiMH, included
Charger:	Included
Magazine:	120 rounds, mid-cap
Receiver Material:	Reinforced polymer
Length:	715–795 mm
Height:	210 mm
Width:	35 mm
Weight:	2100 g
Color:	Black
