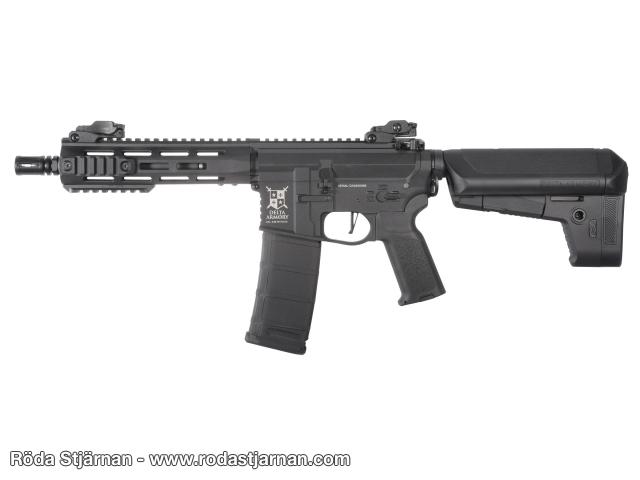

Delta Armory M4 AR15 M-LOK 8" Charlie is a compact and lightweight AR15-based airsoft rifle with an 8" M-LOK handguard, 6.03 mm precision barrel, and quick change spring. Weighing only 1980 g and with a length of 615–695 mm, the model is especially agile in buildings and other environments where a short rifle is an advantage, while the power output of approximately 1.41 J makes it fully usable outdoors as well.
The receiver is made from reinforced polymer for reduced weight, while the outer barrel, trigger, and several other stressed parts are metal. Internally, there is a Version 2 gearbox with SHS parts, metal gears, and 8 mm metal bushings.

8" M-LOK handguard and Picatinny rail

The 8-inch long M-LOK handguard in aluminum allows for mounting accessories such as grips, flashlights, and other M-LOK-compatible add-ons without unnecessary weight.
On top of the rifle is a 22 mm Picatinny rail with adjustable front and rear sights and space for a red dot sight or other optics. The outer barrel has a 14 mm CCW thread for compatible suppressors and other muzzle accessories.

6.03 mm precision barrel and rotary hop-up

The 235 mm long inner barrel has a 6.03 mm diameter and is combined with an adjustable rotary hop-up. The hop-up allows you to adjust the trajectory according to the selected airsoft BB weight and playing environment.
With a stated muzzle velocity of approximately 119 m/s, we recommend 0.25–0.28 g BBs. 0.25 g is a good all-round choice, while 0.28 g often provides a more stable trajectory for outdoor games.

SHS parts and QRS Gen.2

The Version 2 gearbox is equipped with an SHS piston with metal teeth, SHS piston head, and reinforced tappet plate. It also features metal gears, 8 mm metal bushings, and a CNC-manufactured cut-off delayer.
QRS Gen.2 quick change spring makes it possible to change the main spring without dismantling the gearbox. Quick Motor Change also simplifies access to the motor for service or replacement.

Battery, charger, and magazine included

The rifle comes with a 9.6 V 1100 mAh NiMH battery and charger. The battery connects with a Tamiya plug, and 9.6 V NiMH is the recommended battery type in standard configuration.
A 120-round mid-cap magazine is included.

Specifications


Power source:	Electric AEG
Caliber:	6 mm BB
Muzzle energy:	Approx. 1.41 J
Muzzle velocity:	Approx. 119 m/s
Recommended BB weight:	0.25–0.28 g
Gearbox:	Version 2
Hop-up:	Adjustable rotary hop-up
Inner barrel:	6.03 mm
Inner barrel length:	235 mm
Handguard:	8" M-LOK, aluminum
Optics rail:	22 mm Picatinny
Barrel thread:	14 mm CCW
Spring change:	QRS Gen.2 quick change spring
Bushings:	8 mm metal bushings
Battery connector:	Tamiya
Battery:	9.6 V 1100 mAh NiMH, included
Charger:	Included
Magazine:	120 rounds, mid-cap
Receiver material:	Reinforced polymer
Length:	615–695 mm
Height:	210 mm
Width:	35 mm
Weight:	1980 g
Color:	Black
