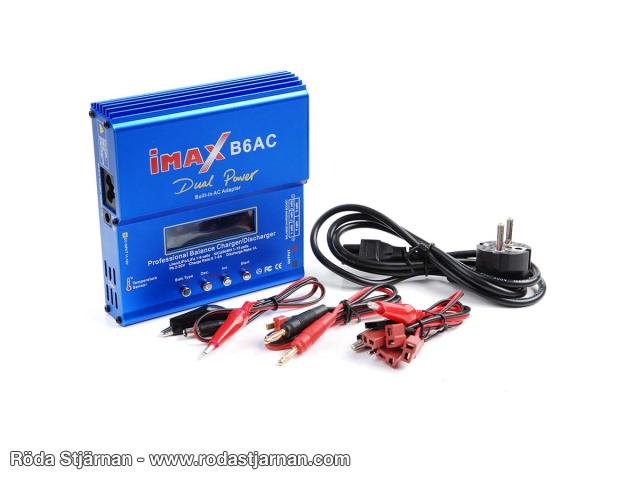

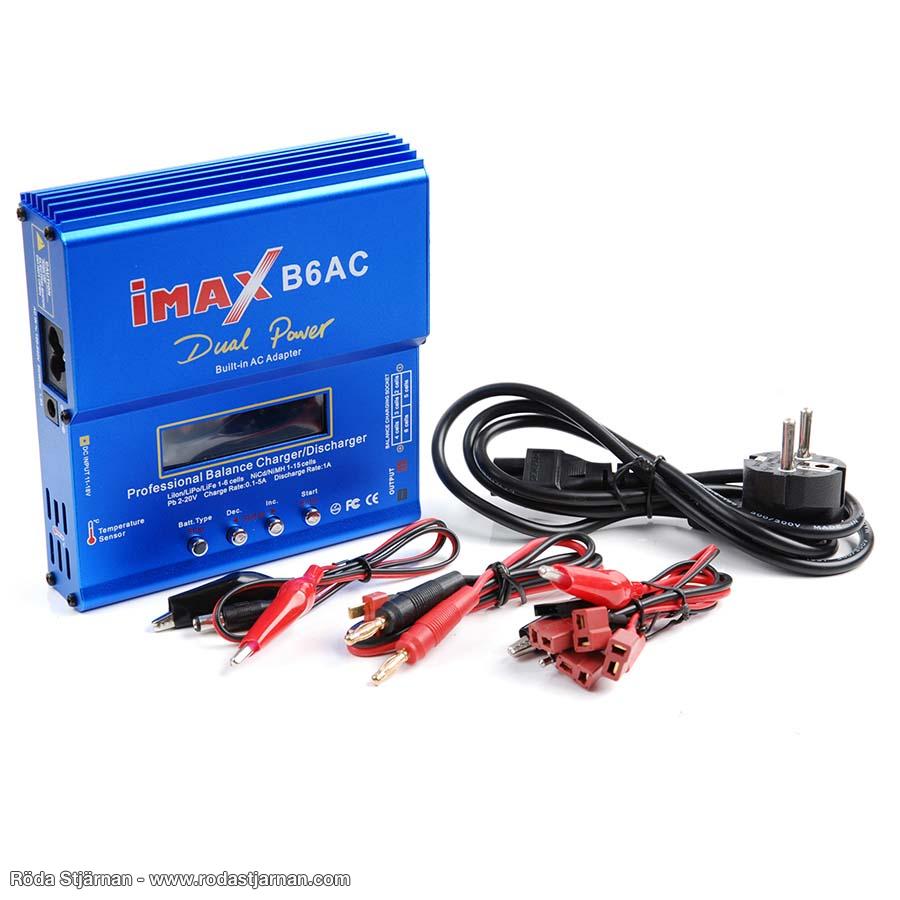

B6AC multi-charger for airsoft batteries

Product description

B6AC is an advanced battery charger for airsoft batteries and other rechargeable batteries, for example RC batteries. It can charge, balance and discharge several battery types, including LiPo, Li-Ion, LiFe, NiMH and NiCd. With adjustable charging current, multiple charging programs and built-in balancing, you have good control over battery charging.
The charger has a built-in power adapter and connects directly to a standard wall outlet using the included power cable. It can also be powered by an external 12 V power supply, for example from a car battery.

Which battery connectors fit the B6AC?

The charger has outputs for charging cables with 4 mm banana connectors and comes with a charging cable for Deans (T-plug). For airsoft batteries, the following applies:

• Deans (T-plug): Compatible with the included charging cable.
• Small Tamiya: Requires a separate adapter or suitable charging cable.
• Large Tamiya: Requires a separate adapter or suitable charging cable.

Please note when charging LiPo batteries: The battery must be connected using both the main connector (for example Deans) and the balancing connector during balanced charging. The small JST-XH balancing connector is used to monitor and balance the battery cells. The B6AC therefore does not charge the battery through the balancing connector alone.

Balancing, Storage mode and adjustable charging current

The built-in balancer monitors the voltage of individual cells in lithium batteries and helps keep them evenly charged. The charger also has a Storage mode that adjusts the battery's charge level for long-term storage.
The charging current can be set between 0.1 and 5 A, within the charger's maximum output of 50 W. NiMH and NiCd batteries have automatic charge termination with delta-peak detection.
The display shows charging information and is used together with the buttons to select battery type, charging current and charging program.

Specifications

Battery types:	LiPo, Li-Ion, LiFe, NiMH, NiCd and Pb
Lithium batteries:	1–6 cells
NiMH/NiCd:	1–15 cells
Lead-acid batteries (Pb):	2–20 V
Charging current:	0.1–5 A
Discharge current:	0.1–1 A
Maximum charging power:	50 W
Maximum discharge power:	5 W
Power supply:	100–240 V AC or 11–18 V DC
Balancing connector:	JST-XH
Balancing:	2–6 cells
Battery connection:	4 mm banana connectors, Deans charging cable included
