Product description
This text has been translated with AI.
Low scope rings for 30 mm rifle scopes on Picatinny rail[/h2]

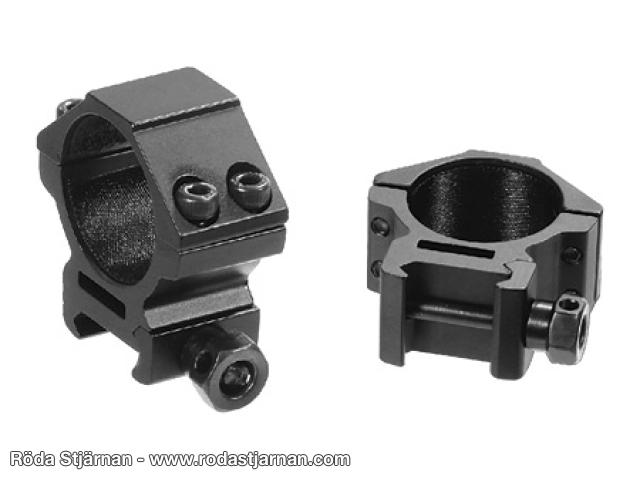

Leapers UTG 30 mm Low Profile scope rings are low-profile scope rings for optics with a
30 mm tube diameter and firearms with a
Picatinny rail / 21 mm standard rail. They are ideal when you want to mount the scope as low as possible over the weapon, which often provides a more comfortable cheek weld and a better line between eye and sight. The rings are intended for
Picatinny rail, i.e. the standard often referred to as
21 mm rail. They do not fit directly on
9–11 mm dovetail, which is common on many air rifles. If your weapon has a dovetail, an adapter from 9–11 mm to Picatinny is required.
Low profile for small and medium-sized objectives
The low profile makes the rings suitable for rifle scopes where the objective is not too large and you want to keep the mount close to the weapon. According to the manufacturer’s measurements, the maximum objective diameter is
48 mm, but the actual clearance also depends on the weapon’s rail, barrel position, and scope shape.
Suitable for
- Weapons: Airsoft rifles, air rifles, and other weapons with Picatinny rail
- Rail type: Picatinny rail / 21 mm standard rail
- Not for: Direct mounting on 9–11 mm dovetail
- Scope tube diameter: 30 mm
- Profile: Low profile for low mounting height
Features
- Material: CNC-machined aluminum
- Surface finish: Black anodized matte finish
- Locking: Hex thumb nut with 12 mm nut
- Sideplate: Full-length locking plate with steel bolt for stable mounting
- Grip tape: Protects the tube and provides extra friction inside the ring
- Reversible: Can be mounted for right- or left-hand tightening
- Quantity: 2 rings
Specifications
|
| Tube diameter: | 30 mm |
| Mount: | Picatinny rail / 21 mm standard rail |
| Profile: | Low |
| Center height: | 24 mm |
| Saddle height: | 9 mm |
| Max objective diameter: | 48 mm |
| Ring width: | 21 mm |
| Width: | 45.8 mm |
| Required Picatinny length: | 21 mm per ring |
| Locking mechanism: | Hex thumb nut |
| Material: | Aluminum |
| Weight: | 49 g per ring |
| Quick release: | No |
| Sideplate torque: | 35 in-lbs |
| Top screw torque: | 17 in-lbs |
Things to consider when choosing scope rings
Always check three things before purchase: that the weapon has a
Picatinny rail, that the riflescope has a
30 mm tube, and that the objective lens has enough clearance. Low profile gives a low and sleek mounting, but for larger objectives a medium or high profile may be needed.
