Leapers UTG high scope mount with offset for 25.4 mm tube

Product description

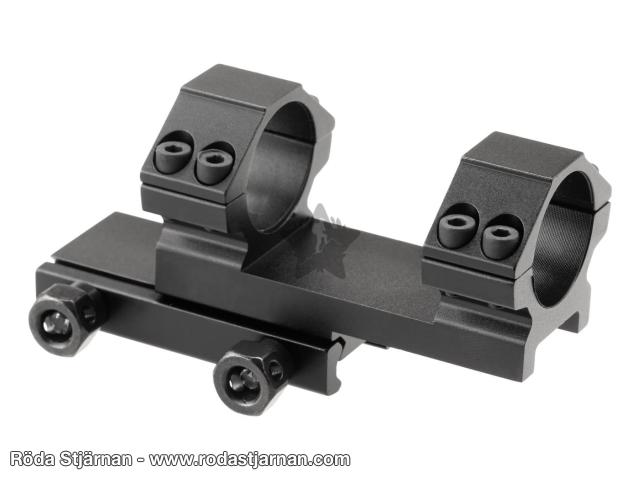

High one-piece scope mount for scopes with a 25.4 mm tube and firearms with Picatinny or Weaver rails. The rings and base are built into a single unit, providing stable mounting and keeping the rings aligned with each other.
The mount has a 38 mm offset and can be reversed so the offset faces forward or backward. This makes it easier to position the scope at the correct eye relief when the rail length or the straight tube sections of the scope limit the usual mounting positions.

Full-length clamp plate for Picatinny and Weaver

The base is secured with two hex screws and a clamp plate along the entire 62 mm mounting surface. The design provides even grip on the rail and fits both Picatinny and Weaver rails. Each ring top is secured by four screws.
Since the rings have a fixed spacing, make sure the scope's adjustment housing fits between the rings and that there are sufficiently long straight tube sections for both rings. The mount is a high model and intended for scopes with objectives up to 56 mm. The actual clearance also depends on the outer diameter of the objective and the firearm's design.
The mount is precision-machined from aluminum with a black matte anodized finish.

Dimensions and specifications

Tube diameter:	25.4 mm (1 inch)
Rail type:	Picatinny/Weaver
Construction:	One-piece mount
Profile:	High
Offset:	38 mm, reversible
Total length:	100 mm
Base mounting length:	62 mm
Mounting height:	Approx. 18 mm from rail to tube bottom
Ring width:	18 mm per ring
Distance between rings:	39 mm inside
Outer ring dimensions:	75 mm from outer edge to outer edge
Maximum objective diameter:	56 mm
Rail locking:	Two hex screws and full-length clamp plate
Screws per ring:	4 pcs
Material:	Aluminum
Finish:	Black matte anodized
