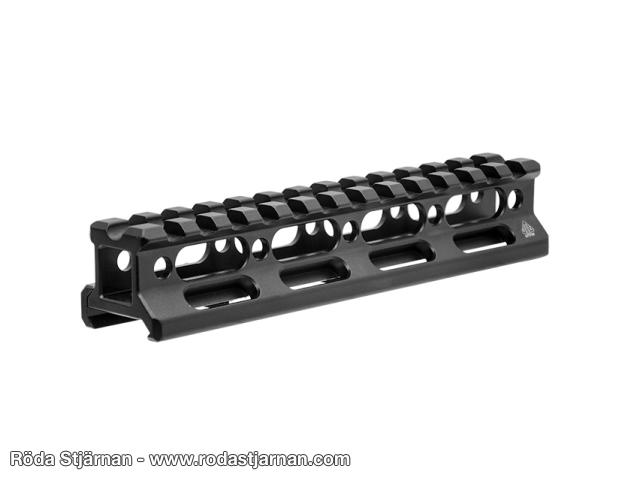

Leapers UTG Super Slim Riser Mount is a
rail riser that raises the mounting surface by 21 mm. It mounts on a Picatinny rail and can be used on firearms, air rifles, and airsoft guns to position scopes, red dot sights, and other optical accessories at a more suitable height. The 140 mm long top has
13 Picatinny slots and provides plenty of mounting space. It is especially useful when existing scope rings place the optics too low or when more clearance is needed for a scope with a large objective lens.
Riser mount for AR-15 and AR-10
On AR-15, AR-10, and other firearms with a
flat-top receiver, a scope in standard low or medium rings may sit too low in relation to the stock. This can make it difficult to get your eye at the correct height behind the sight with a natural cheek weld. This
riser mount raises the entire mounting surface by 21 mm and can therefore be a practical alternative when suitable extra-high rings or a dedicated AR-compatible scope mount are not available.
Stable mounting with integrated recoil stops
The rail riser is attached with a
locking T20 Torx screw and an integrated, square recoil stop. The construction prevents the mount from shifting under recoil and helps the mounted optics maintain their zero. The continuous edge design makes it possible to mount several identical riser mounts next to each other and create a longer, continuous Picatinny rail. The specially designed Picatinny slots provide easy access during installation and reduce the risk of accessories catching on the edges.
CNC-machined aluminum with low weight
The mount is
CNC-machined from 6061-T6 aluminum and has a matte black anodized finish. The extensive weight-saving cutouts keep the weight down to 79 g. A
T20 Torx key is included for installation.
Specifications
|
| Mounting system: | Picatinny |
| Application: | Firearms, air rifles, and airsoft guns |
| Number of Picatinny slots: | 13 |
| Required space: | 13 Picatinny slots |
| Elevation: | 21 mm |
| Length: | 140 mm |
| Width: | 25.4 mm |
| Weight: | 79 g |
| Material: | 6061-T6 aluminum |
| Finish: | Matte black anodizing |
| Screw type: | T20 Torx |
| Torque: | 35 in-lb, approx. 4.0 Nm |
| Included: | T20 Torx key |
