Umarex HPM low scope rings 30 mm for 11 mm dovetail

Product description

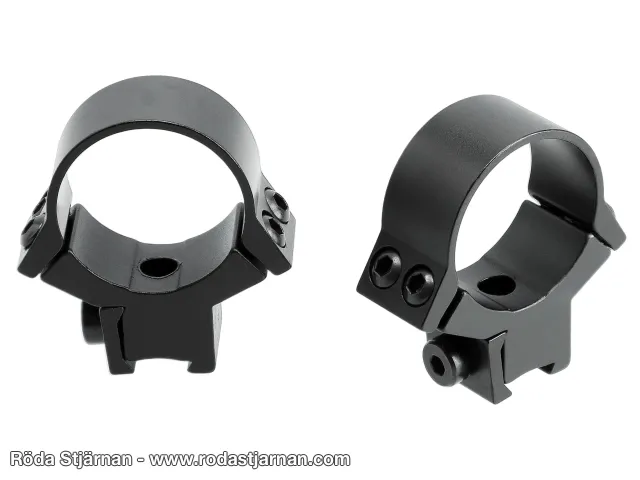

Umarex HPM is a pair of low scope rings for rifle scopes with a 30 mm tube. They are mounted directly on 11 mm dovetail rails, which is a common type of rail on air rifles.
The low profile places the scope close to the weapon and can provide a more natural cheek weld against the stock. At the same time, check that the objective lens of the scope gets enough clearance above the rifle.

Saddle height of 12.7 mm

The saddle height of the rings is 12.7 mm. The saddle height is measured from the contact surface of the ring against the 11 mm rail to the underside of the scope tube. With a tube diameter of 30 mm, the center of the tube is thereby about 27.7 mm above the rail.
This measurement is especially important when you need to check if the objective lens clears the rifle's barrel or cylinder. The outer diameter of the objective lens, not just the specified lens diameter, should be taken into consideration.
Each ring surrounds the scope tube and is held together with four screws. The rings are mounted separately, so the distance between them can be adjusted according to the scope's design. A hex key for mounting is included.

Specifications

Fits:	Rifle scopes with 30 mm tube
Mount:	11 mm dovetail
Profile:	Low
Saddle height:	12.7 mm from the rail to the underside of the tube
Estimated center height:	Approx. 27.7 mm from the rail to the center of the tube
Screws:	4 per ring
Color:	Black
Quantity:	2 rings
Included:	Hex key
