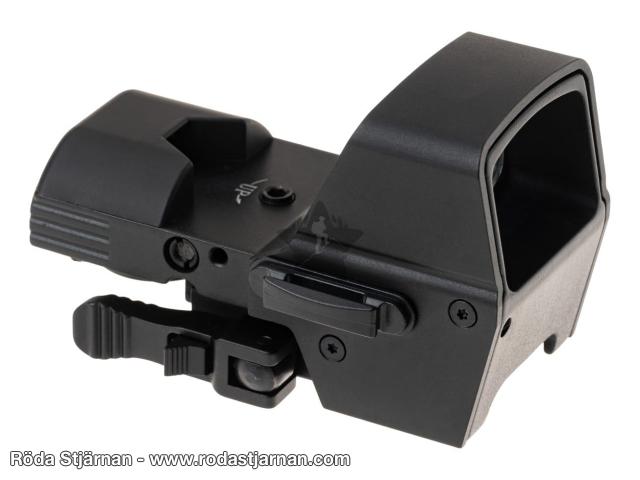

VictOptics SRD 1x23x33 red dot sight with four reticles

Product description

The large sight window of 23 x 33 mm provides an open field of view and makes it easy to find the aiming point. Four selectable reticles, red or green illumination, and six brightness levels allow the sight to be adapted to both target and lighting conditions.

Four Selectable Reticles

The reticle options are based on a 3.5 MOA dot, circle, and crosshair. This allows the user to choose a simple dot or a more prominent reticle depending on what stands out best against the target.

Red or Green Illumination

The reticle can light up red or green and has six brightness levels. This makes it possible to adjust the lighting based on the surroundings and background.

QD Mount for Picatinny

The included QD mount fits Picatinny rail and can be attached or detached without tools. The battery compartment is located on the side, so the CR2032 battery can be replaced without removing the sight from the weapon.

Aluminum Housing

Both the sight and mount are made from 6061-T6 aluminum. The sight has IPX4 water protection and a rated shock resistance of 700 G.

Specifications

Magnification:	1x
Sight window:	23 x 33 mm
Number of reticles:	4
Dot size:	3.5 MOA
Reticle color:	Red or green
Brightness levels:	6
Parallax:	Parallax-free, under 3 MOA
Click value:	1 MOA
Elevation adjustment range:	80 MOA
Windage adjustment range:	80 MOA
Mount:	QD mount for Picatinny rail
Battery:	1 x CR2032, not included
Battery compartment:	Side-fed
Water protection:	IPX4
Shock resistance:	700 G
Material:	6061-T6 aluminum
Color:	Matte black
Weight:	193 g without mount

Package Contents

• Red dot sight
• QD mount for Picatinny rail
• Screwdriver tool
• Plastic key
• Hex keys
• Cleaning cloth
